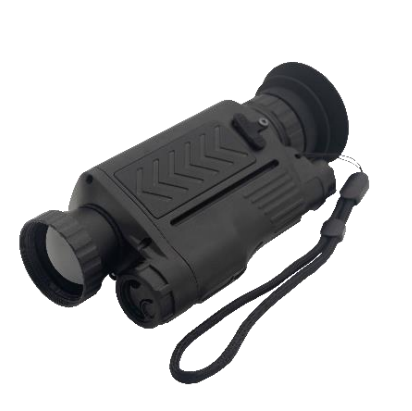

High Performance Thermal Monocular（MV Series MV6 ）

Description：

1.Well integrated with small size and low weight

2.Designed for the personal consumer with high performance at low cost

3.Low power consumption enables the extra long working time

4.Be suitable for a wide range of night vision,hunting, outdoor activities and other specific applications

Specification：

Weight ≤400g (includes battery)

Size (L ×W ×H)≤180mm ×75mm×56mm

Connectors :Type C

Resolution: 640×512

Technical Parameters：

1.Detector Type :Uncooled Microbolometer

2.Resolution: 640×512

3.Spectral Range: 8 μm ~ 14 μm

4.Pitch Size: 12 μm

5.Lens Option :25mm/35mm (standard)

6.Display Type :Color OLED, monocular

7.Display Size :0.39” 1024×768

8.Frame Rate :50Hz

9.Image Patterns: Black Hot, White Hot, Rainbow, Iron, Medical

10.Digital Zoom: 1× / 2× / 3× / 4×

11.Working Temperature: -20oC ~ +55 oC

12.Encapsulation: IP65

13.Power Supply :Battery :ICR18650, 1 each

14.Functions :LRF(2km), WIFI,Snapshot, Video Recording, Crosshair
