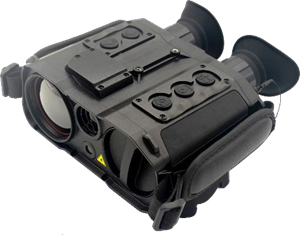

Uncooled IR Multifunctional Binocular（MP5-U）

Description：

1.Provides crisp and clear thermal imagery for target identification

2.Built-in GPS, DMC and LRF provide accurate range to target as well as precise location

3.Be suitable for a wide range of night views, law enforcement, surveillance & security and environmental mapping applications

Specification：

Weight：1.2 kg (battery excluded)

 Resolution：640×512

Pitch Size ： 12 μm

Technical Parameters：

1.Thermal Imaging        Detector Type： Uncooled Microbolometer

        Resolution：640×512

        Pitch Size ： 12 μm

        NETD ≤ 40 mK

        FOV ： 8.8°× 7°

2.Laser Rangefinder        Wave Band：905 nm

        Ranging Capability ：10m ~ 1.5Km (Vehicle)

        Ranging Accuracy：  ± 2m

3.Laser Indicator        Laser：520nm 30mW

4.Positioning Accuracy        Self-positioning ： 5m (CEP), 10m (PE)

         Target Positioning   ≤ 20m @ 1 Km

5.Digital Compass        Accuracy ： 1° (RMS)

        Angle Accuracy  ：0.5° (RMS), pitch/roll angle

6.Display        Eyepiece：1920×1080 OLED, binocular

        Diopter：-5 ~ +5

7.Storage        Memory Size：32GB ~ 256GB

        Capacity：Video ≥4 h; BMP snapshots ≥10 K pics

8.Power Supply        Batteries ：ICR 18650, 4 each

        Battery Life ≥ 8 h

9.Interfaces        Data ：Standard USB

        Video Output  ：PAL

        Communication ： RS232

        Power Supply ：12V (±3V)

        WiFi：Video transmission and control

10.Physical        Dimensions：182mm×165mm×75mm（L×W×H）

        Weight：1.2 kg (battery excluded)

        Encapsulation  ：IP67

        Working Temp ： -40 oC ~ +60 oC

        Storage Temp： -45 oC ~ +70 oC

Ext. Functions        Meteorological measurement/ballistic calculation (customized)
