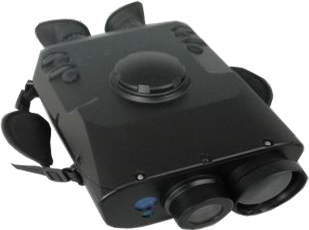

Cooled IR Multifunctional Binocular（MP10-C）

Description：

1.Provides crisp and clear thermal and visible imagery for target identification

2.Built-in GPS, DMC and LRF provide accurate range to target as well as precise location

3.Be suitable for a wide range of night views, law enforcement, surveillance & security and border patrols applications

Specification：

Resolution： 640×512, 15μm

Weight ：  ≤3.4kg (With battery)

Technical Parameters：

1.Optical specifications

Item： Infrared Channel     Resolution： 640×512, 15μm        Spectral Band ：3.7~4.8μm

FOV：7.4°×6.0°~2.3°×1.8

Visible Light Channel

Resolution：1920×1080, 2.7μm  Spectral Band ： 0.4~0.9μm  FOV：7.6°×6.1°~1.9°×1.5°

2.Laser Rangefinder

Wavelength ： 1550nm ±20nm

Max Measuring Range ： 70m~10km

Measuring Accuracy：  ±1.2m

Location Module

3. Location Mode ：BD+GPS

Horizontal Location Accuracy (CEP）：  5m

Elevation Location Accuracy (PE)： 10m

4. Digital Magnetic Compass

Azimuth Measurement Range ： 0°~360°

Azimuth Measurement Accuracy  ： 0.5°（RMS, -15°~+15°）

Pitch Angle Measurement Range： -90°~+90°

Pitch Angle Measurement Accuracy：  1°（RMS）

Inclination Angle Measur Range：  -180°~+180°

Inclination Angle Measur Accuracy： 1°（RMS）

5. Other Information

Display ： 1280×1024 OLED

Storage ： 10000 BMP&4h AVI

Viewfinder Diopter ： -4.4~+6

Weight ：  ≤3.4kg (With battery)

Operating Time  ： ≥7.5 h

Dimension ： 329×204×111mm (±10mm)

Interfaces ：  USB/PAL/RS232

Operating Temperature： -40℃~+55℃

Storage Temperature： -55℃~+70℃

Encapsulation：  IP67
